Reboot e Reset
✔️ Reboot
Switch#reload Are you sure? (enter 'y' or 'n'): y Running Config data has been changed. Do you want to continue the reload without saving the running config? (enter 'y' or 'n'): y Halt and reboot
✔️ Reset
Switch#erase startup-config
Erase startup-config Done.
Switch#
Switch#reload
Are you sure? (enter 'y' or 'n'): y
Could not verify if the Running Config data has been changed.
Do you want to continue the reload anyway? (enter 'y' or 'n'): y
Halt and reboot
FGS Boot Code Version 03.1.00
Enter 'b' to stop at boot ...
BOOT INFO: load monitor from primary, size = 214047
Appln_Monitor:root_task: ***local_overide = 0***
BOOT INFO: load image from primary
BOOT INFO: bootparam at 0009c3f0, mp_flash_size = 002540b4
BOOT INFO: code decompression completed
BOOT INFO: branch to 00400100
Starting Main Task ...Pre Parsing Config Data ...
INFO: empty config data in the primary area, try to read from backup
INFO: empty config data in the backup area also
Parsing Config Data ...
INFO: empty config data in the primary area, try to read from backup
INFO: empty config data in the backup area also
Copyright (c) 1996-2010 Brocade Communications Systems, Inc.
UNIT 1: compiled on Apr 19 2010 at 16:20:30 labeled as FGS07001c
(2441396 bytes) from Primary fgs07001c.bin
SW: Version 07.0.01cT7e1
Boot-Monitor Image size = 403765, Version:03.1.00T7e5 (Fev2)
HW: Stackable FLS648
==========================================================================
UNIT 1: SL 1: FLS-48G 48-port Management Module
Serial #: AN08171237
P-ENGINE 0: type D804, rev 01
P-ENGINE 1: type D804, rev 01
==========================================================================
400 MHz Power PC processor 8248 (version 130/2014) 66 MHz bus
512 KB boot flash memory
30720 KB code flash memory
128 MB DRAM
STACKID 1 system uptime is 7 seconds
The system : started=warm start reloaded=by "reload"
FLS648 Switch>
Stack unit 1 Power supply 1 detected and up.

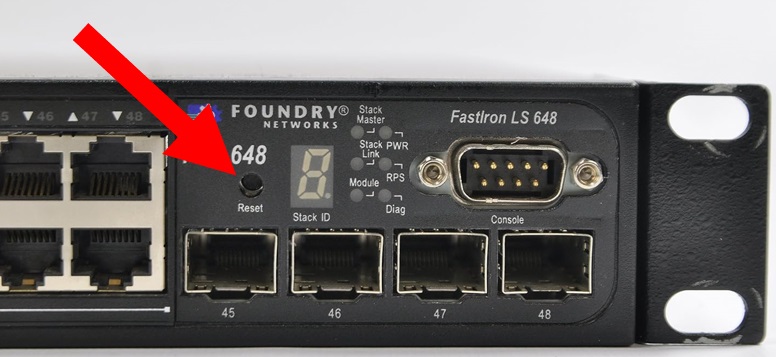

✔️ Reset Físico
